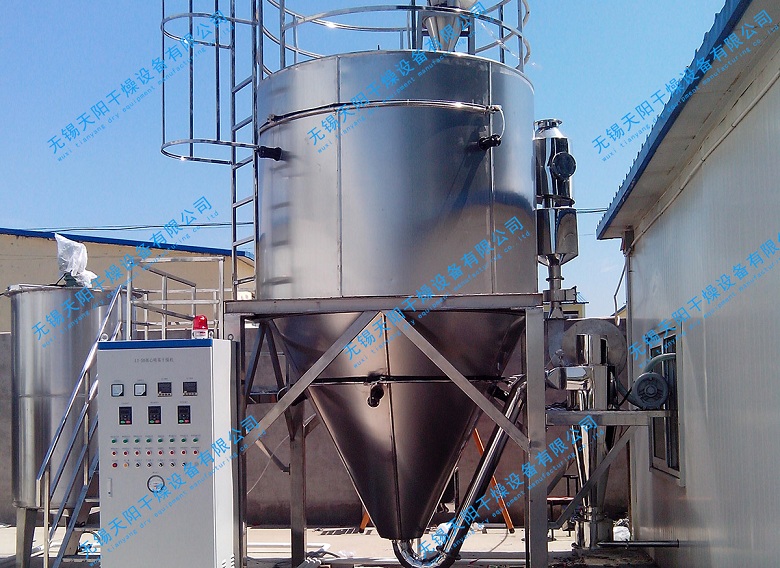

Biological Pesticide Centrifugal Spray Drying Equipment
Model: LT-25;Material: SUS304, SUS316L, Ti;Max. Water Evaporation Capacity: 25kg/h;Heating Method: Electricity + steam, fuel oil, gas, up to the user.


Contact: Mr Tang
E-mail: yictang@tydrying.com
Mobile Phone: +86-13906177584
Website: www.tydrying.com
Address: Qiangzhou Town,Wuxi City,Jiangsu,China

Whats app:
+8613771018713

Brand Name: TIANYANG

Type: Biological Pesticide Spray Dryer

Model: LT-25

Material: SUS304, SUS316L, Ti

Max. Water Evaporation Capacity: 25kg/h

Heating Method: Electricity + steam, fuel oil, gas, up to the user.

Applications: Biological products, medicine processing, chemicals processing, plastics processing, food processing, etc.

Warranty: One year


Product Description

LT Series high speed biological pesticide centrifugal spray drying equipment is a new centrifugal spray dryer researched and developed successfully by our company according to china's actual conditions after absorbing and digesting internationally advanced technology. It has features such as reasonable structure, stable performance, convenient operation, no dead corners, and no exposed bolts.

LT-25 biological pesticide spray drying machine adopts Plc automatic control. All operations are completed automatically according to the process parameters set by users. It fully meets the requirements for biological pesticide production in GMP.





Technical Specifications of Fermented Liquid Spray Dryer

Model

LT-25

Max. Water Evaporation Capacity (kg/h)

25kg/h

Material

SUS304, SUS316L, Ti

Inlet Temperature (℃)

140-350

Out Temperature (℃)

80-90

Spray Type

High Speed Centrifugal Atomizer

Applications

Biological products, medicine processing, chemicals processing, plastics processing, food processing, etc.

Transmission Form of Centrifugal Spray Head

Compressed air drive

Atomization Rotated Speed (RPM)

22000

Spray Disc Diameter (mm)

102

Heating Method

Electricity

Electric Heating Maximum Power (KW)

45

Dimensions (L×W×H) m

3×2.7×4.26m

Dry Powder Recovery

95%


Main Features

1.LT biological pesticide centrifugal spray dryer with fast drying speed can constantly evaporate 95%-98% moisture.

2.This spray drying machine has excellent uniformity, liquidity and solubility as well as high purity.

3.This spray drying equipment has simple production process and easy operation. After drying, it does not need to grind and screen, which can reduce production procedure and enhance the purity.


Application Field

* Pharmaceutical Industry: Including all kind of Active Pharmaceutical Ingredients, chinese medicine, chemical medicine, etc.

* Chemical Industry: Potassium chloride (sodium , alkaline dyes and pigments, dye intermediate, compound fertilizer, formaldehyde silicic acid, catalyst, sulfuric acid agents, amino acid and white carbon black, etc.

* Plastic resin: AB, ABS emulsion, urea resin, phenolic resin, polyethylene, polyvinyl chloride, etc.

* Food industry: Rich fat milk, cocoa milk powder, milk replacer, pig blood powder and egg white (yolk), etc.

* Food and Plant: Oat, chicken liquid, coffee, instant tea, flavoring meat, protein, soybean, peanut protein and hydrolysate, etc.

* Carbohydrate: Corn steep liquor, corn starch, glucose, pectin, malt sugar, potassium sorbate and so on.
